7.8.3 Viscosity diagram for black liquor, sulphate liquor

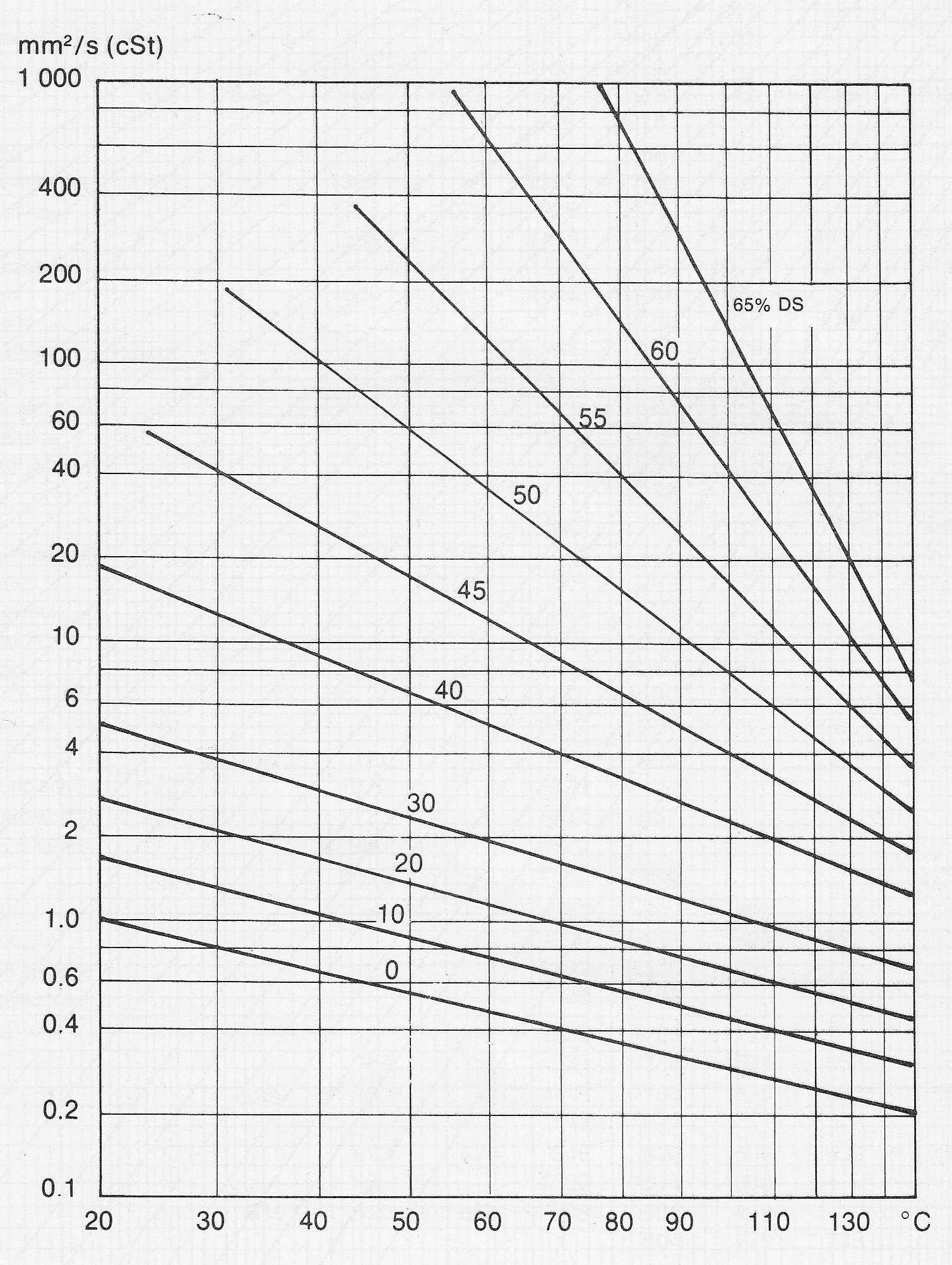

Figure 7.8.3 Viscosity temperature diagram for black liquor, sulphate liquor, at various dry substance contents (source “Recovery of Pulping Chemicals, 1968”)
